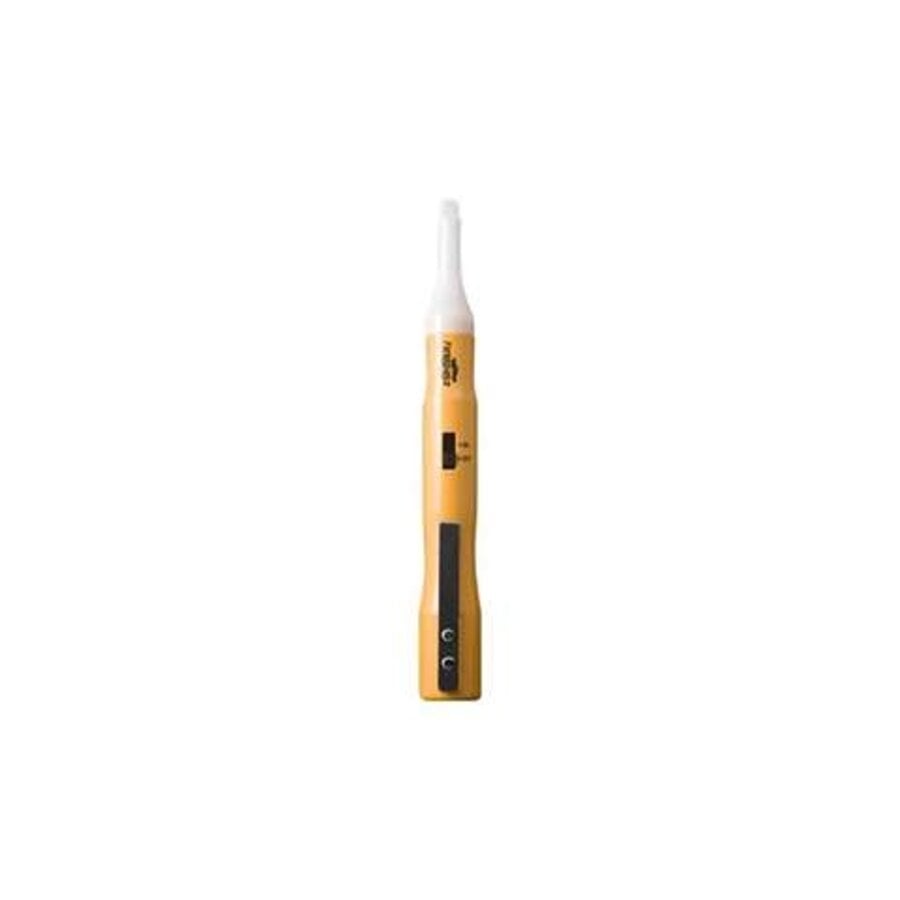

This contactless voltage detector has been developed to quickly check for the presence of AC voltage on cables and electrical components. Because direct contact with a bare conductor is not required, initial checks on thermostats and other electrical components of HVACR systems can be easily performed.

The detector has a voltage range of 24 to 440 VAC. When AC voltage is detected, the device warns the user with a bright red LED light and a clear acoustic signal. This allows the presence of voltage to be detected even in dimly lit or noisy technical rooms.

Thanks to the integrated clip, the voltage detector can be easily attached to work clothing, a belt, or a tool bag. The compact design makes this a practical tool for service engineers, installers, and HVACR technicians.

A contactless voltage detector is intended as a first indication of the presence of voltage. Always use a suitable measuring instrument to declare an installation de-energized and follow the applicable safety procedures.

Specifications:

• Product type: contactless voltage detector

• Article number: FPI-8902-000

• Detection method: contactless

• Voltage type: alternating current

• Voltage range: 24 to 440 VAC

• Visual indication: red LED

• Acoustic indication: buzzer

• Mounting clip: yes

• Specified dimensions: 229 x 102 x 127 mm

• Suitable for: cables, thermostats, and HVACR systems

• Application: initial check for the presence of AC voltage
