Scope of delivery

Designed for
50 cups / day
Inclusive
1 milk hose, 50 cm
1 universal wrench

Material and finish

Colour
Black
Grinding plant
Conical grinding unit
Grinding plant material
Steel
Pressure system
Piston pressure

Safety and hygiene

Sealable bean/topping container
No
Removable bean/topping reservoirs
No
Removable water tank
Yes
Cleaning program
Yes
Memory of the cleaning cycles
Residual reservoir capacity
Approximately 35 cups
Dishwasher-safe waste container
Yes
Important note
From a water hardness of 5° dH, we strongly recommend the installation of the KV1 water filter.
Failure of these wear parts after reaching the relevant consumption quantity does not constitute a defect of the fully automatic coffee machine.
Brewing installation: 50,000 units
This fully automatic coffee machine contains wear parts.
Pump, drainage valve, grinding mechanism and seals: 25,000 units
If the fully automatic coffee machine is properly maintained, it can generally be assumed that the following wear parts will last up to the specified beverage volume.

Equipment and functions

Operating system
Android
Video playback
Up to 3 videos can be stored
Playable individually via USB
Video can be saved for a separate procedure (switching on, standby, preparation)
Cup counter
Per program and in total
Descaling signal
Yes
Fill level indicator
Yes

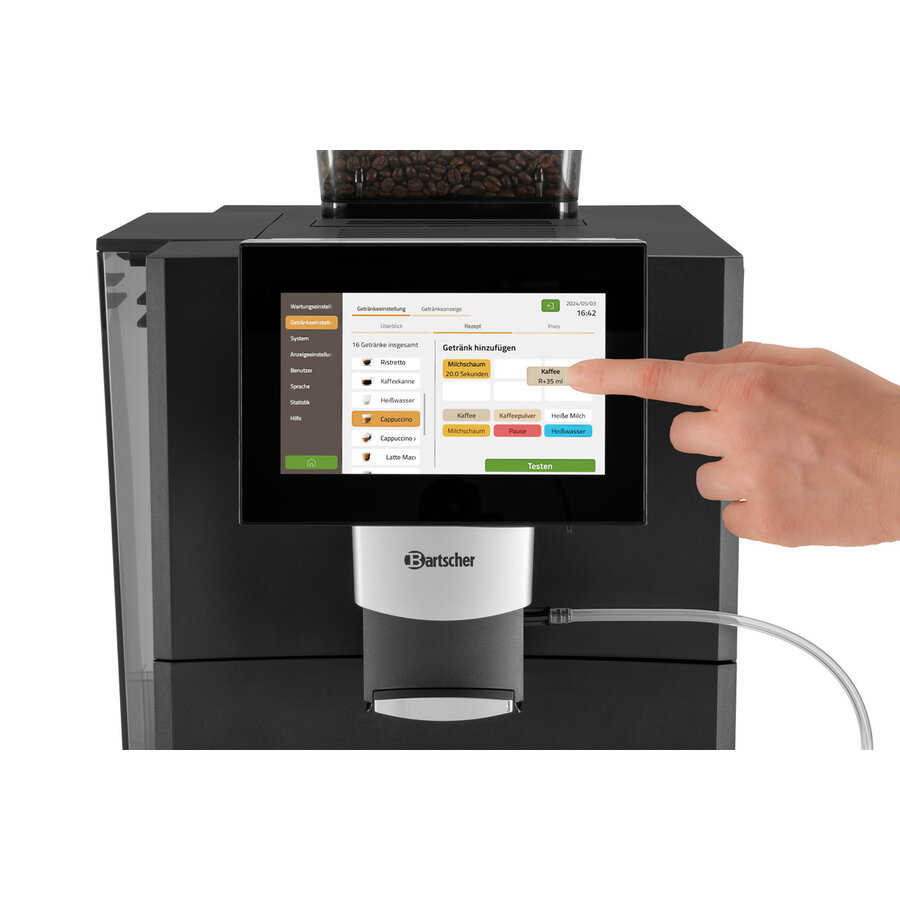

Control
Touch
IoT compatible
No
Settings
Operator mode (standard, self-service mode, professional mode)
Drink names
Grinding level 4-stage
Milk quantity
Video playback
Preparation quantity
Water quantity
Milk reservoir
No
Milk supply
External via hose
Manually adjustable in 2 steps (cold and hot milk)
Programs
16, preset, individually overwritable
Others to save without restrictions
password-protected menu
Hot water function
Yes
Warm milk function
Yes

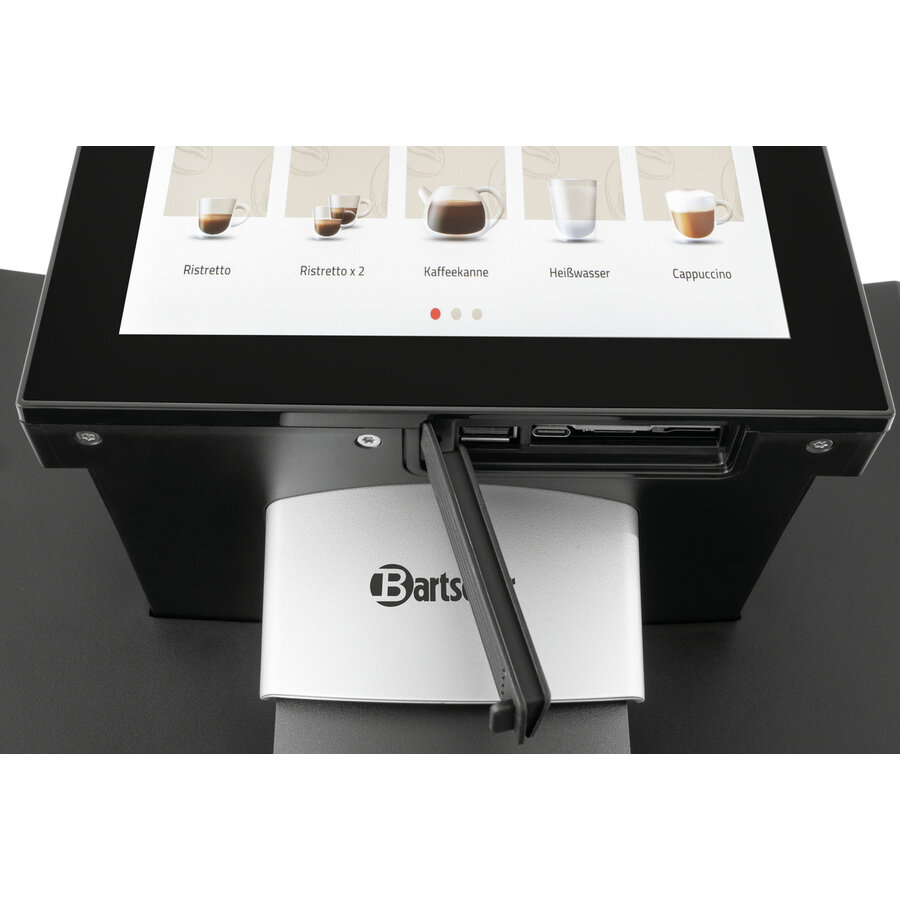

USB connection
Yes
Milk frother
Yes
Milk temperature setting manually adjustable in 2 steps
Display
Descaling and cleaning info
Error messages
Sound level
Program
Status
Automatic shutdown
Yes

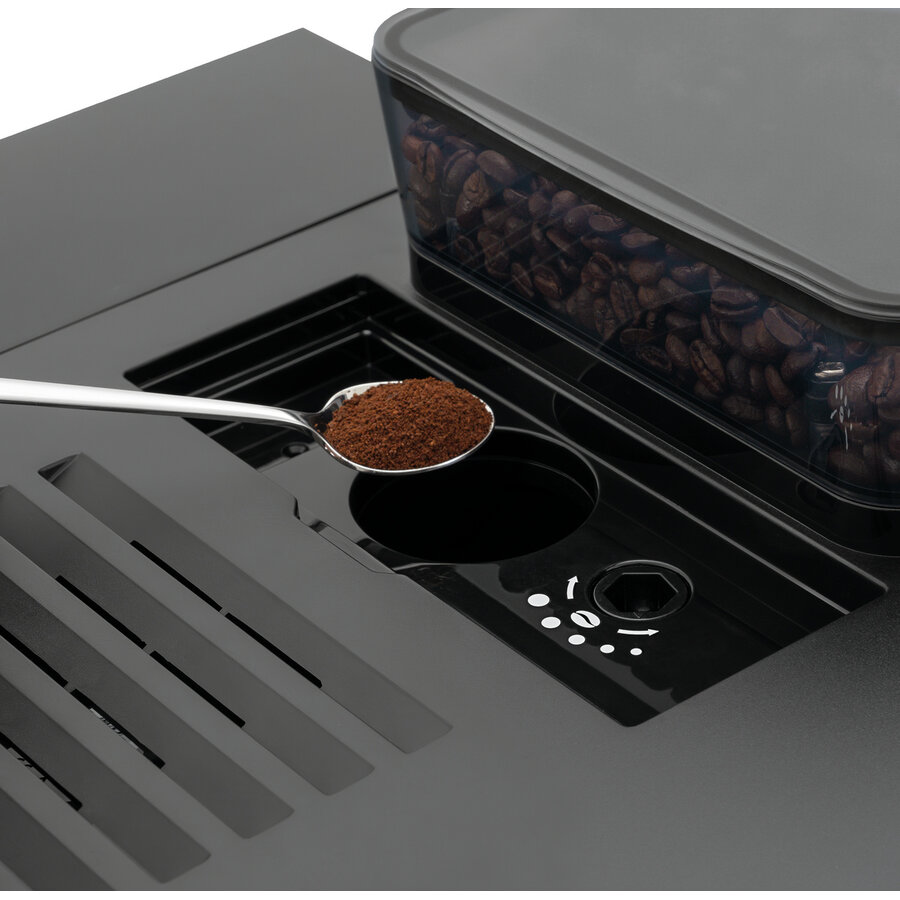

Option for ground coffee
Coffee by the cup
Manual 5 - 14 g
2-head position
Yes

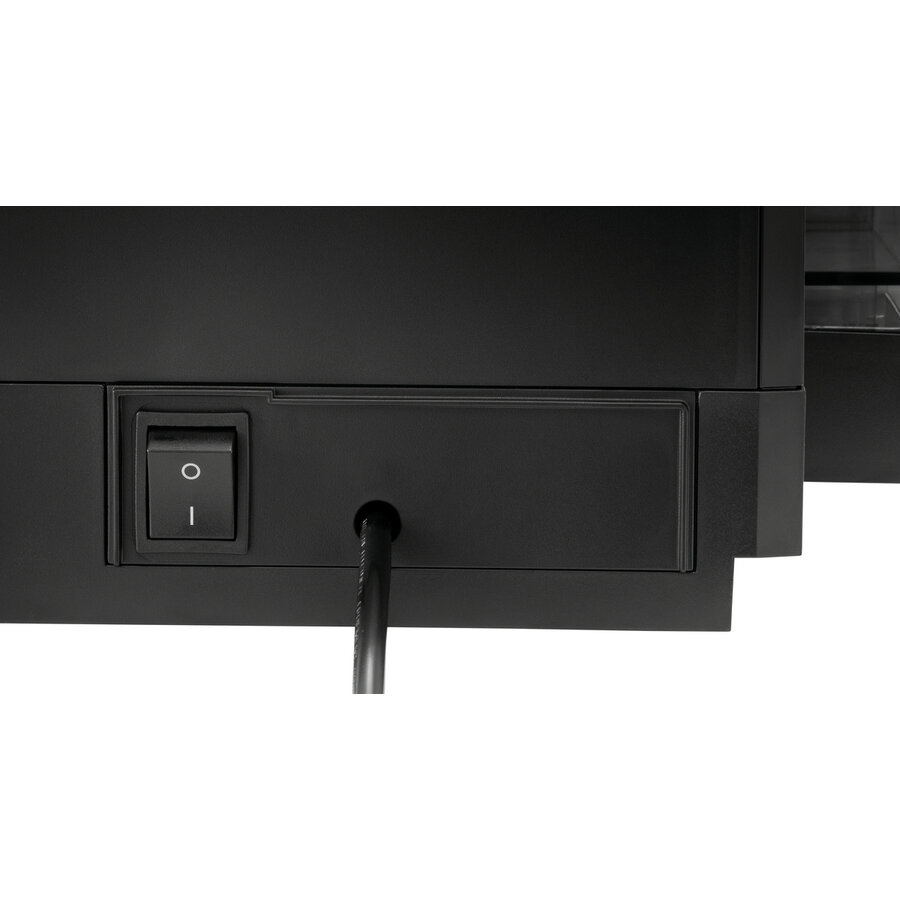

On/Off switch
Yes
Indicator light
Standby
Properties

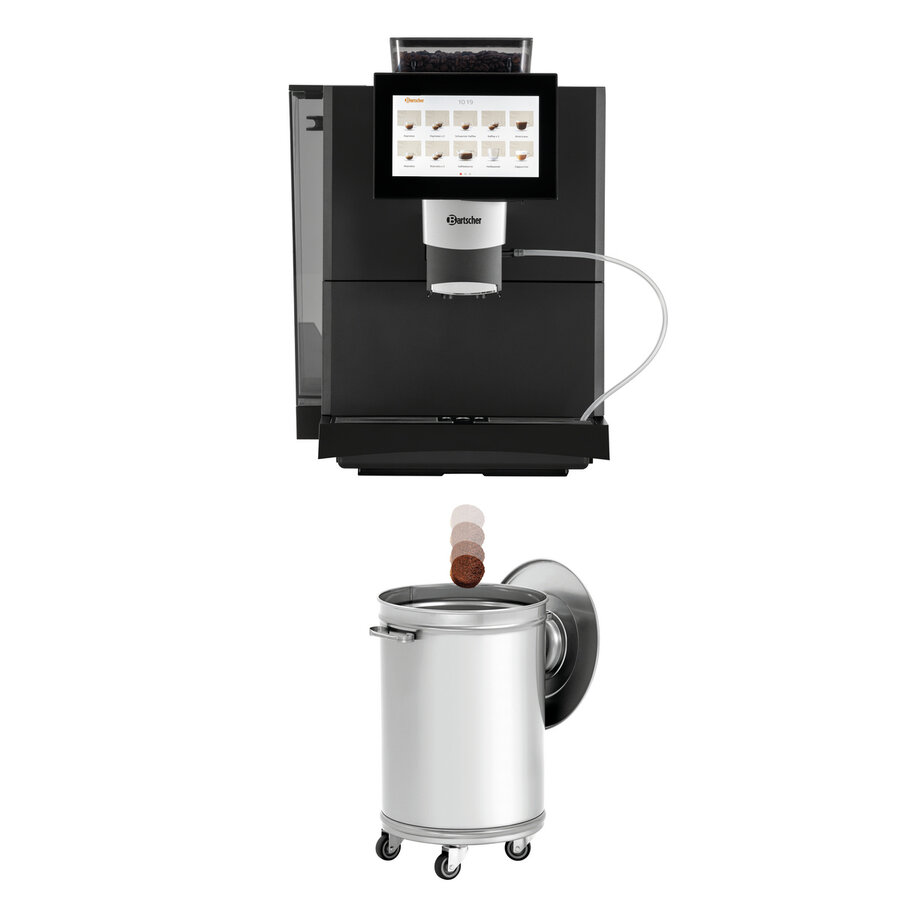

For automatic waste ejection, the waste container and the base plate are pre-formed for the recess.
Powerful heating: 2 x 1,400 W
Water tank with handle

Technical specifications

Coffee preparation group(s)
1
Minimum quantity to be prepared
15 ml
Maximum capacity
60 cups at 120 ml / hour (spout for 1 cup)
80 cups at 120 ml / hour (spout for 2 cups)
Number of bean containers
1

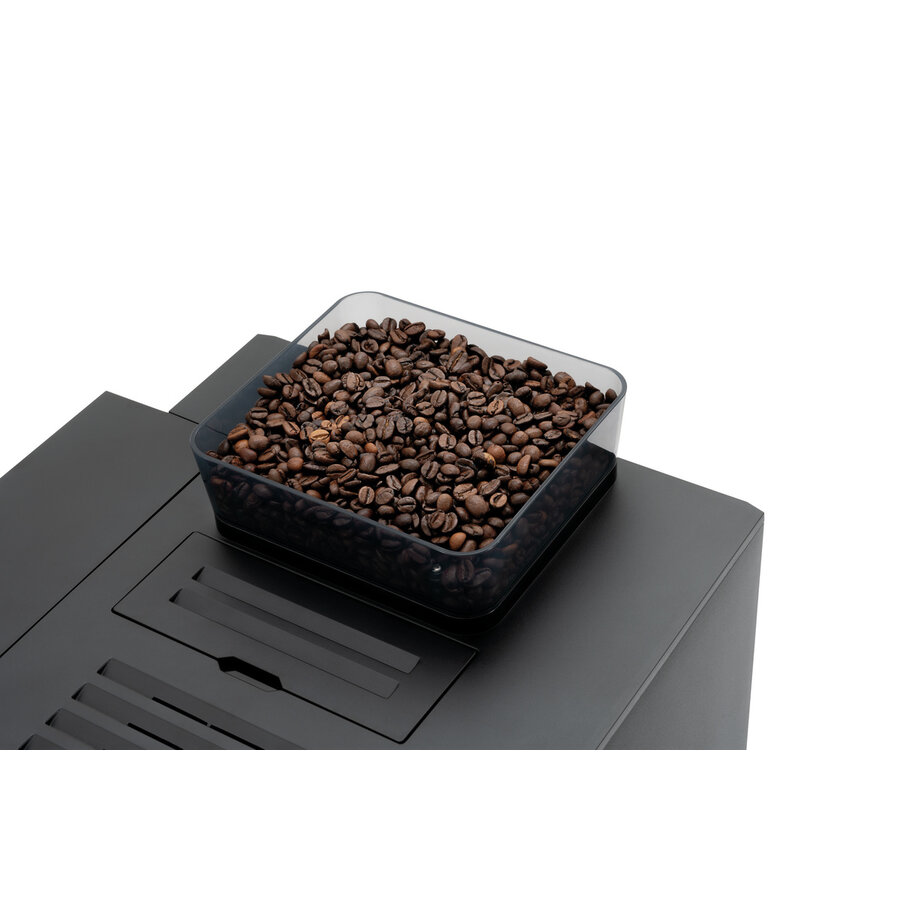

Bean hopper capacity
550 g
Water supply
Water tank
Water connection
-
Water tank capacity
4 Liters
Pump pressure
19 bar
Height-adjustable spout
80 - 160 mm
Execution
Fully automatic
Device connection
Ready for connection
Connection value
1.5 kW
Tension
230 V
Frequency
50 Hz
Material
Plastic
Width
350 mm
Depth
525 mm
Height
475 mm
Weight
15.2 kg
