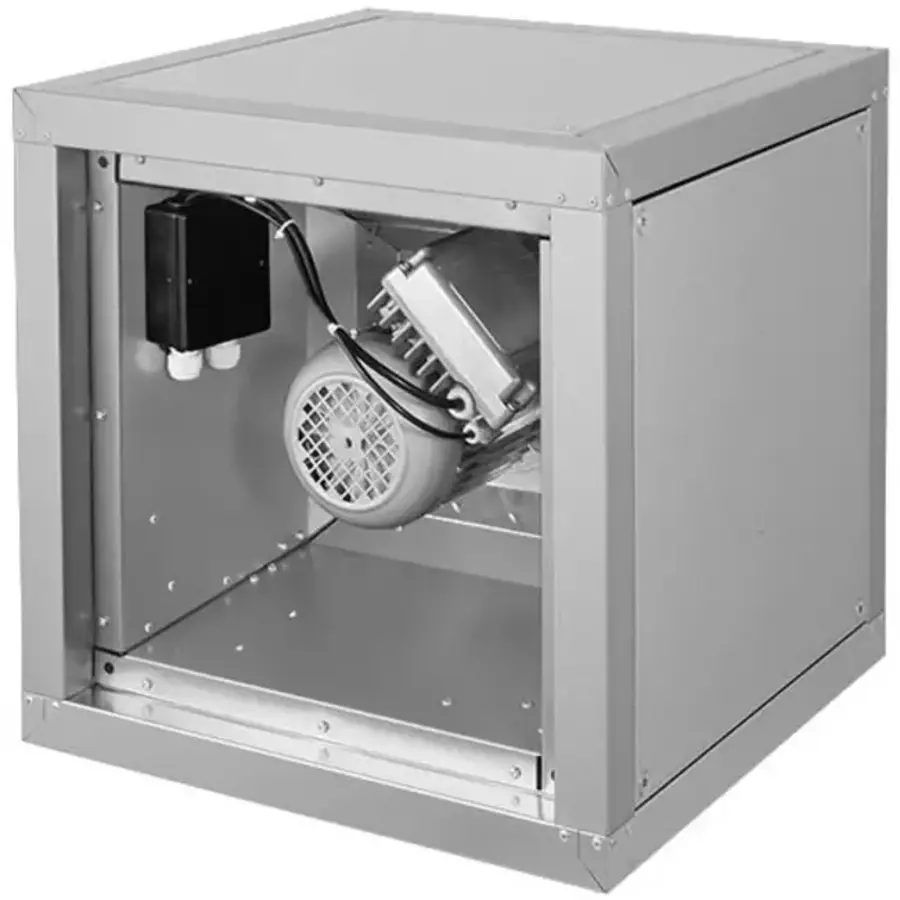

The Ruck MPC EC T-series box fan is a high-quality and energy-efficient solution for industrial and hospitality extraction. Thanks to the EC motor mounted outside the airflow, contaminated air (such as grease and smoke) is not passed through the motor, significantly improving its service life and reliability. This makes the fan ideal for hospitality extraction and other applications involving contaminated air.

The fan offers a maximum capacity of up to 5920 m³/h and can operate continuously at temperatures up to 120°C , ensuring optimal performance even under heavy loads. The casing features 30 mm of insulation for noise reduction and improved heat retention. For added safety, the unit is equipped with an internal electronic temperature monitor to prevent burnout.

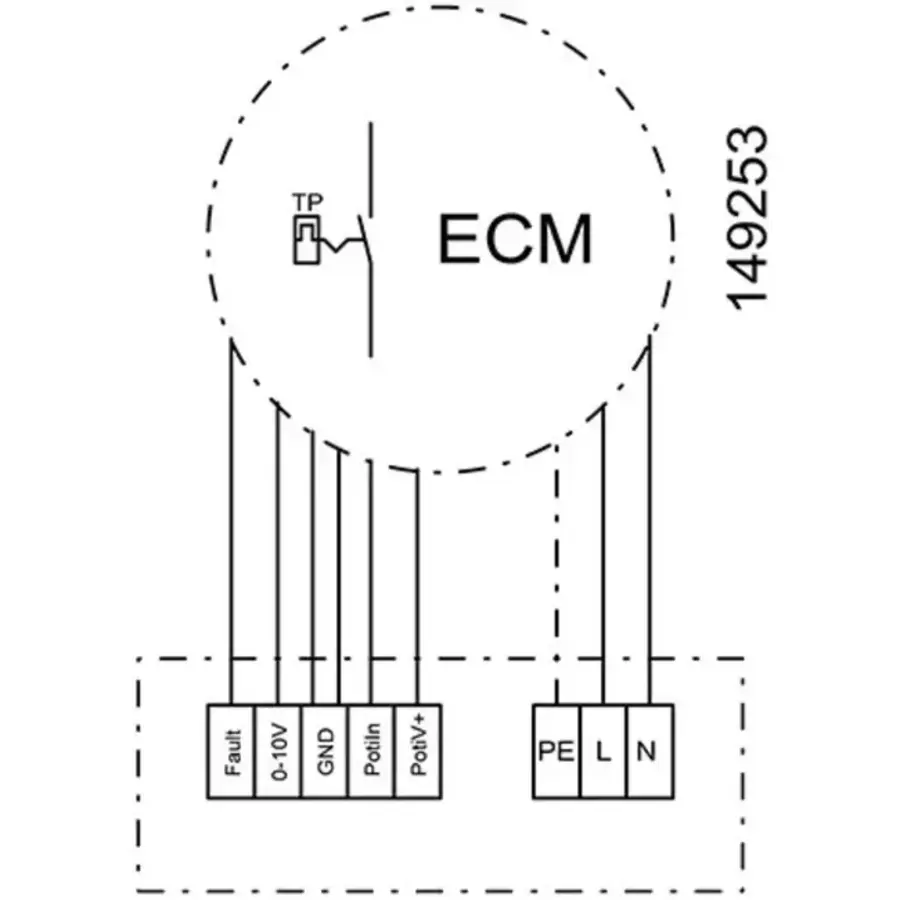

The fan speed is easily adjustable via a continuously variable speed control (MTP 20) or a constant pressure regulator with a 0–10V connection . Furthermore, the discharge direction is variable, which offers flexibility during installation. The Ruck base frame can be used for mounting. When using an adapter, we recommend using a Ruck connection sleeve to reduce vibration and noise in the duct.

Ruck Ventilatoren GmbH is a leading German brand with over 25 years of experience and is known for its innovative and high-quality solutions. With a focus on energy efficiency and high quality standards, its products meet the latest ERP requirements .

Specifications

Technical data

• Brand: Ruck ventilators GmbH

• Category: Heat-resistant box fan for catering industry

• GTIN: 4061199030342

• Manufacturer Part Number: 149321

• Item number: 65149321

• Category code: 35

Performance

• Max. air volume: 5920 m³/h

• Max. pressure: 1200 Pa

• Max. power consumption: 1500 W

• Nominal power consumption: 1500 W

• Max. speed: 2550 1/min

• Nominal speed: 2550 1/min

• Max. permissible speed (EC): 2550 1/min

Temperature

• Max. permissible ambient temperature: 50 °C

• Min. working temperature: -20 °C

• Continuous heat resistance: 120 °C

Other

• Weight: 63 kg

• Outlet direction: 90° offset from intake

• Insulation: 30 mm

• Additional features: condensation and grease drainage, adjustable speed, motor outside airflow
