• Square tube profile 27 x 27 mm.

• Distance between mounting points: 150 mm.

• Bottom rung at 140 mm from the floor

• Top rung at 10 mm from the top

• Stainless steel bolts

• There are plastic caps provided at the top

• Plastic adjustable feet at the bottom



• Anodized aluminum

• Profile 12/10, 50x22 mm.

• Depth 460 mm.



• Depth 460 mm.

• Perforations: round, Ø 40 mm.

• Easy to remove and dishwasher safe

• It is also possible to (partially) remove the shelves in this rack and hang various sizes of Gastronorm containers in them.





• 100% food safe (corrosion-free) and fitted with removable shelves.

• Easy installation without tools

• Freestanding setup with accessibility on every side and in all corners

• Levels adjustable every 150 mm

• Easy to move or remove and washable (hygiene)

• Modular construction (this allows for optimal use of the available space)

• Heavy load capacity per floor / maximum load

• Numerous flexible and optimal configuration options (including I, L, T, U, E shapes)



• cooling and/or freezing cells down to -30°C

• commercial kitchens

• laboratories

• hospitals

• dry food storage areas

• dishwashing kitchens

• etc. etc.

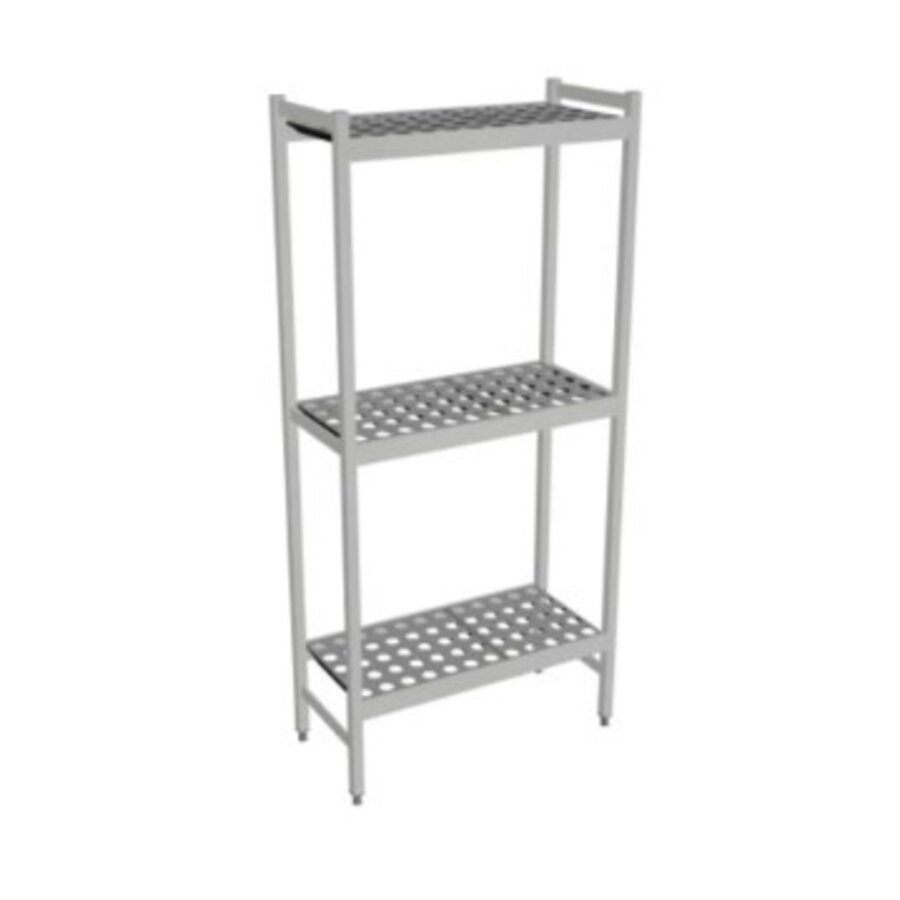

The basic rack consists of a modular structure of two uprights and a selectable number of levels, consisting of crossbeams and shelves. The uprights are equipped with the necessary mounting holes for attaching conical hook-in supports (a Fermod patent). These hook-in supports, which can be attached to the uprights at various heights, are made of a highly durable alloy. The crossbeams, which are available in various standard lengths, can then be easily pressed onto the hook-in supports. Finally, the easy-to-maintain plastic shelves are placed between these crossbeams. These are suitable for temperatures down to –30°C.



The extension rack consists of one upright and a selectable number of levels. Two extension racks can be connected to a base rack at any time. To create extension connections at a 90° angle (L, U, E, or T configuration), aluminum corner connectors are used, which slide over the crossbeams of the base rack.

Thanks to the conical hook-in supports (patented), the racks can be assembled quickly, efficiently and without tools by a single person.





When mounting in a corner, corner connectors can be used to keep the corner open and prevent an upright from getting in the way. These special corner connectors can withstand the same load as an upright.
